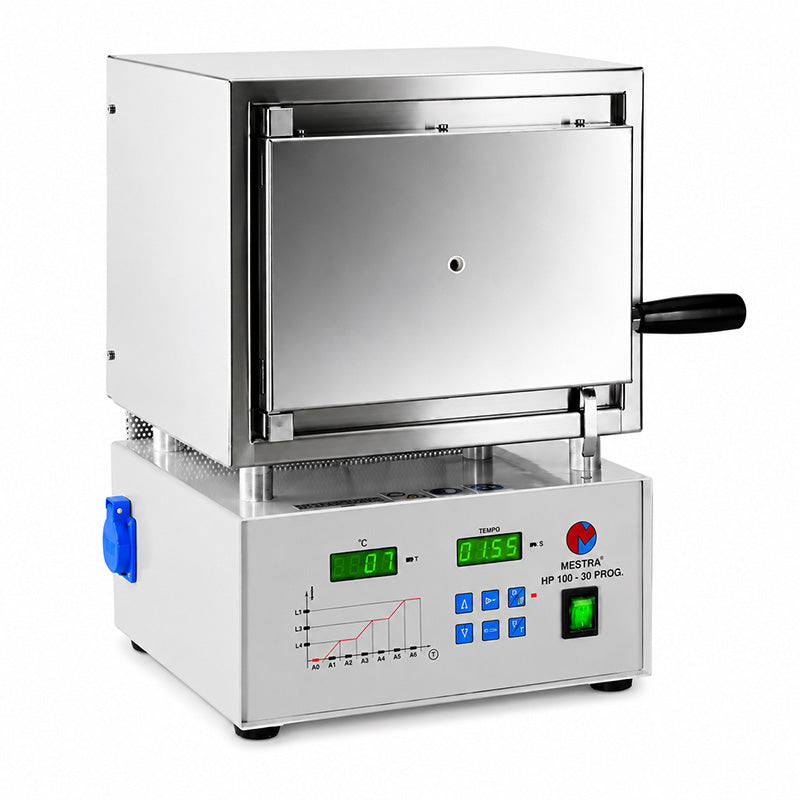

Mestra HP100 Oven - Muffle with 4 Heating Sides Entirely in Steel Inox
Earn 4 loyalty points
Référence: 080148
Livraison gratuite dès 198 €*
Paiement sécurisé - SSL
Livraison 24/48 h en France
Livraison 2 à 5 jours Europe
Paiement par virement
Paiement par chèque*
Paiement en 3 fois**
** Pour un achat de 300 à 1100 € en France (Choix dans le panier) - *Uniquement en France
Mestra
SKU: 080148
1100 °C
20 Programs
HP100 Mestra burnout furnace for dental laboratories
The HP100 Mestra burnout furnace is designed for the preheating of dental casting rings in dental laboratories. Its large heating chamber, ceramic muffle and programmable memory functions help secure daily casting procedures and thermal cycles.
Maximum temperature:
1100 °C
Programs:
20 programmable memories
Power:
3000 W
Capacity:
10.6 L
A stable heating furnace for dental casting cycles
The HP100 Mestra has been developed to ensure highly stable dental ring preheating with excellent thermal consistency. It supports critical laboratory procedures before casting, where temperature regularity directly affects the final restoration quality.
Its multi-stage programming system allows the heating cycle to be adjusted according to the investment material, ring size and laboratory workflow. This thermal control helps reduce temperature variations, casting defects and unnecessary remakes.
Dental laboratory applications
- Preheating of casting rings for dental alloy casting.
- Dental investment material heating procedures.
- Controlled thermal cycles before metal casting.
- Suitable for fixed prosthetics, partial frameworks and metal work.
- Efficient repetitive workflows thanks to programmable memories.
Advantages of the HP100 Mestra
- HP100 ceramic muffle for durability and stability.
- 4 integrated heating elements for homogeneous heating.
- 20 programmable memories for laboratory protocols.
- Programmable heating ramp in °C/min.
- Delayed start function to optimize workflow organization.
- Acoustic end-of-cycle signal.
- Door safety system and pyrometric probe monitoring.
Why choose the HP100 burnout furnace for a dental laboratory?
In a dental laboratory, a burnout furnace must above all be reliable, consistent and easy to program. The Mestra HP100 burnout furnace meets these requirements with a large chamber, powerful heating performance and electronic control adapted to dental laboratory protocols.
It helps standardize heating cycles, improve daily comfort and secure repetitive investment and casting procedures.
Quick operating guide
- Select an existing program or create a new heating cycle.
- Adjust the temperature stages according to the investment material used.
- Program the heating ramp in °C/min.
- Place the casting rings onto the supplied ceramic tray.
- Start the cycle and wait for the acoustic end-of-cycle signal.
Dental laboratory tip
To preserve the heating chamber, avoid thermal shocks and overloading. Leave enough space around the casting rings to promote homogeneous heat circulation.
Regular inspection of the pyrometric probe and ceramic tray helps maintain reliable heating performance and reduces production interruptions.
Presentation video
Discover the Mestra burnout furnace and its programmable heating functions for dental laboratories.
Technical specifications
| Product | HP100 Mestra burnout furnace |
| Brand | Mestra |
| SKU | 080148 |
| Height | 525 mm |
| Width | 440 mm |
| Depth | 490 mm |
| Weight | 40 kg |
| Voltage | 220 V |
| Power | 3000 W |
| Maximum temperature | 1100 °C |
HP100 muffle dimensions
| Internal height | 149 mm |
| Internal width | 234 mm |
| Internal depth | 305 mm |
| Internal capacity | 10.6 L |
| Smoke outlet | Ø 38 mm |
Safety & control
The HP100 furnace integrates several useful laboratory safety systems: door opening detection, pyrometric probe break monitoring and acoustic end-of-cycle signal.
Reinforced electrical connection cable.
These functions improve daily comfort and reduce risks associated with long or repetitive heating cycles.
Documents & resources
Complementary products
Delivery & contents
Delivery: 4 to 5 business days.
Contents: 1 Mestra HP100 burnout furnace 220 V with ceramic casting ring tray.
FAQ
What is the HP100 Mestra burnout furnace used for?
It is used for the preheating of investment casting rings before dental casting procedures.
It enables precise thermal cycles to improve investment stability and result consistency.
Is the HP100 suitable for intensive laboratory use?
Yes, its 10.6 L internal capacity and 20 programmable memories simplify repetitive laboratory cycles.
It is ideal for laboratories looking to standardize their heating protocols.
Why is the ceramic muffle important?
The ceramic muffle improves thermal stability and enhances chamber durability.
It contributes to homogeneous heating, which is essential for dental casting ring preheating.
How can the furnace be preserved over time?
Thermal shocks should be avoided and heating ramps should always be respected.
Regular inspection of the pyrometric probe, ceramic tray and smoke outlet helps maintain optimal performance.
