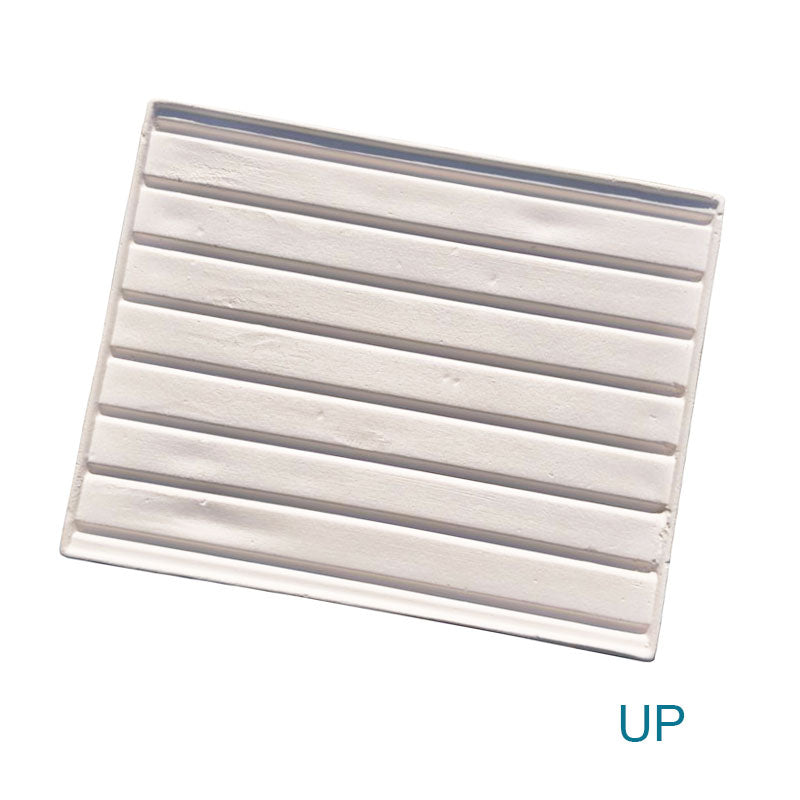

Saule for Mestra Cylinder Preheating Furnace
Référence: 080144-05
Saule for Mestra Cylinder Preheating Furnace
Compact refractory saule for a Mestra cylinder preheating furnace, designed to optimise hot air circulation, facilitate the evacuation of calcination gases and protect the lower resistances of the furnace.
Applications – Saule for Mestra Preheating Furnace
- Saule for Mestra cylinder preheating furnace.
- Allows cylinders to be placed higher to ensure hot air circulation inside the cylinder.
- Facilitates the evacuation of calcination gases from resin or wax.
- Protects the lower resistances of the furnace against splashes and deposits.
- Suitable for Mestra HP25, HP50 and HP100 cylinder furnaces.
Instructions for use
- Place the saule on the clean bottom of the furnace, then place the cylinders directly on top.
- Do not handle the part while it is still hot.
- Clean regularly to remove investment and burnt resin particles.
- Replace the saule as soon as it starts to bulge or deform.
Technical specifications
Furnace compatibility
Mestra HP25 • HP50 • HP100
Material
Compact refractory ceramic
Use
Cylinder support, hot air circulation, gas evacuation, resistance protection.
Mestra HP100 size
22 × 28 cm
Mestra HP50 size
17 × 21 cm
Mestra HP25 size
14 × 15 cm
Delivery
1 piece of your choice (model for HP25, HP50 or HP100).
Related products
Delivery
Delivery: 1 saule for cylinder furnace of your choice – model for Mestra HP25, HP50 or HP100.
📌 What is the saule for Mestra cylinder preheating furnace used for?
The saule acts as a refractory support for the cylinders in the Mestra preheating furnace.
It raises the cylinder to promote hot air circulation inside and all around it, and improves the evacuation of calcination gases from resin or wax, while protecting the lower resistances of the furnace.
📌 When should the saule be replaced?
It is recommended to replace the saule as soon as it starts to bulge or deform.
A damaged part can disrupt hot air circulation, create stresses on the cylinders and reduce the quality of calcination.
📌 How should the saule be maintained?
Maintenance consists in regularly cleaning the surface to remove investment and burnt resin particles.
Make sure you never handle it while it is still hot, in order to avoid thermal shock and the risk of burns.
📌 Is this saule compatible with all Mestra furnaces?
This model is available for the three Mestra preheating furnaces: HP25, HP50 and HP100.
Each size is adapted to a specific model.
You only need to choose the size corresponding to your furnace when placing the order.
