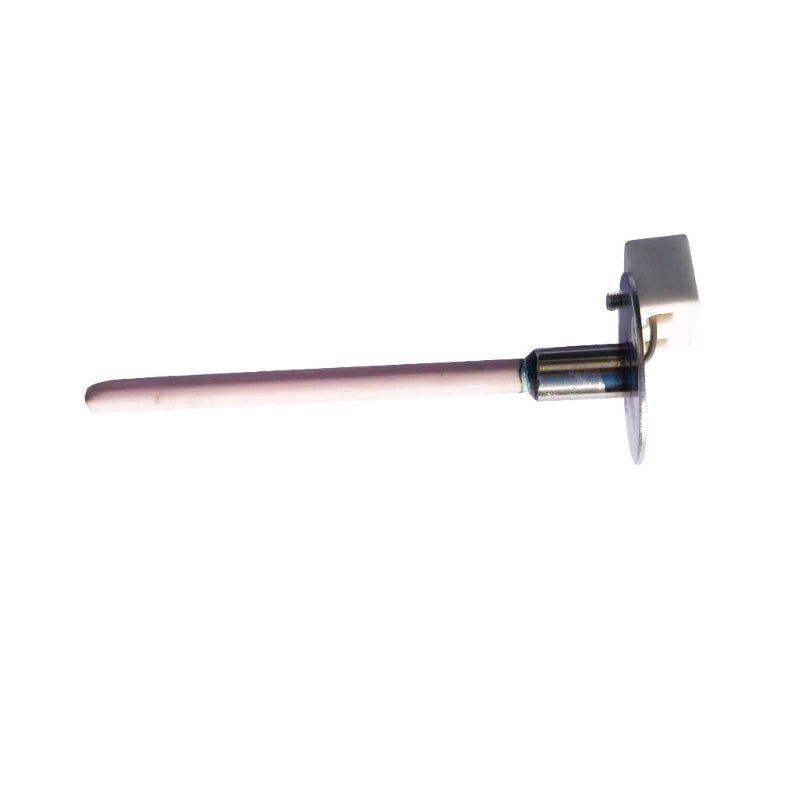

Reinforced Thermocouple for Mestra Cylinder Furnace
Référence: 080130-14
Reinforced Thermocouple for Mestra Cylinder Furnace
The Mestra Reinforced Thermocouple is designed for cylinder burnout furnaces, equipped with an integrated temperature probe inside the muffle to ensure precise control of heating curves and burnout cycles.
Applications — Reinforced Mestra Thermocouple
- Reinforced Mestra thermocouple for cylinder burnout furnaces.
- Temperature probe located inside the muffle to measure the real burnout temperature.
- Ensures accurate temperature rise for investment cylinders.
- Essential for stable heating programs and consistent firing results.
- Compatible with all Mestra cylinder furnace models.
- Protects internal sensors from impact caused by cylinders or tongs.
Replacement: Instructions for Use
- Disconnect the furnace and allow it to cool down completely before handling.
- Remove the old thermocouple by carefully loosening the ceramic connector block.
- Insert the new probe gently into the port, avoiding shocks to the ceramic area.
- Tighten the connector without excessive force and check stability.
- Run a test cycle to verify correct temperature reading.
Technical Specifications
Product type
Reinforced thermocouple / temperature probe for burnout furnace
Furnace compatibility
Usable on all Mestra cylinder furnace models
Function
Measures internal muffle temperature during heating
Rod diameter
7 mm
Ceramic length
11 cm
Support washer diameter
4 cm
Connection
Ceramic terminal block
Related Products
Delivery
Included: 1 reinforced thermocouple for Mestra cylinder furnaces (complete probe ready to install).
What is the purpose of the thermocouple in a Mestra cylinder furnace?
The thermocouple contains the temperature sensor that measures the heat inside the muffle during burnout.
It allows the Mestra furnace to follow the heating curve accurately and ensures reproducible results with investment cylinders.
When should the thermocouple be replaced?
It should be replaced if frequent temperature errors occur, alarms appear, heating times become abnormal, or if the ceramic part is cracked or damaged.
A faulty probe can distort the actual muffle temperature.
Is the thermocouple fragile?
Yes, the ceramic section and internal sensor are shock-sensitive.
The reinforced probe provides greater impact resistance and a longer lifespan.
Always handle the thermocouple carefully, with the furnace off and cold, and avoid striking the rod or ceramic washer against the furnace walls.
Is this thermocouple compatible with all Mestra furnaces?
This thermocouple is compatible with all Mestra cylinder furnace models, provided the original mounting and connector type are respected.
It fits perfectly into the existing port. For older furnace models, slightly widening the hole with a waxing knife may be necessary.
The reinforced probe must not be forced in.
If in doubt, check your furnace documentation for the correct probe reference.
