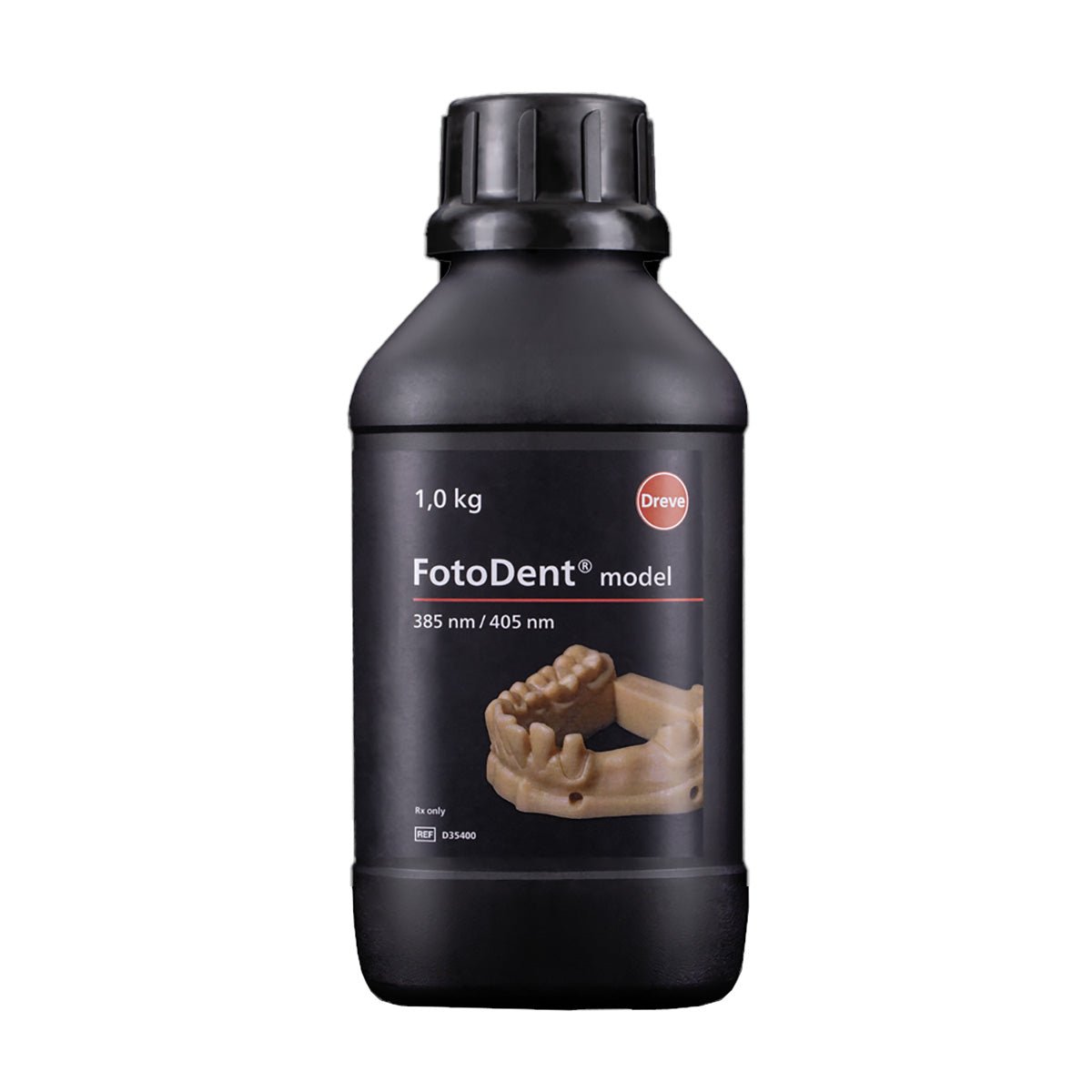

Fotodent Model 3D resin for printed models 405 Nm - Beige - Drêve.
Référence: D35400
FotoDent® Resin for Printed Models – 385 nm / 405 nm
The FotoDent® resin for printed models is designed for the production of 3D printed dental models with excellent detail resolution, strong dimensional stability, and a fast production workflow. It is intended for laboratories looking for a reliable resin for orthodontic and prosthetic models, easy to handle and suitable for daily production.
A 3D resin designed for precise, fast, and consistent dental models
In a laboratory environment, a high-quality dental model 3D resin must provide the right balance between printing speed, accurate detail reproduction, post-processing stability, and handling comfort. This FotoDent® version is specifically developed for this purpose: it is suitable for study models, working models, thermoforming models, and more broadly for digital workflows in orthodontics, prosthetics, and aligner production.
Key advantages of FotoDent® model resin
- Faster printing workflow thanks to optimized material performance.
- Maintains excellent accuracy for critical laboratory details.
- Compatible with dental 3D printing systems operating at 385 nm and 405 nm.
- Suitable for working models and study models in orthodontics and prosthetics.
- Controlled viscosity for smooth and consistent handling.
- 1 kg format ideal for daily laboratory use.
Laboratory applications
- 3D printed orthodontic models
- Study models for analysis and planning
- Working models for fixed or removable prosthetics
- Supports for thermoforming aligners and trays
- CAD/CAM workflows requiring reliable and readable models
This type of dental model resin is particularly valuable for laboratories aiming to ensure consistent readability, precise geometry, and repeatable results across multiple prints.
Why this material performs in daily lab use
In real production conditions, the performance of a dental 3D model resin is not only defined by technical data. It also depends on ease of cleaning, post-curing stability, surface finish, and overall readability. With a viscosity of 0.8–1.2 Pa·s, combined with a flexural strength ≥ 85 MPa and a flexural modulus ≥ 1,750 MPa, this resin is well suited for professional laboratory use.
Technical specifications
| Material type | Photopolymer resin for 3D printed dental models |
|---|---|
| Wavelengths | 385 nm / 405 nm |
| Application | Dental models for orthodontics and prosthetics |
| Color | Beige opaque |
| Packaging | 1 kg bottle |
| Viscosity | 0.8 – 1.2 Pa·s |
| Flexural modulus | ≥ 1,750 MPa |
| Flexural strength | ≥ 85 MPa |
| Elongation at break | > 11 – 15% |
| Final hardness | 80 – 85 Shore D |
Recommended laboratory workflow
- Shake the bottle thoroughly before use.
- Pour the resin carefully into the printer tank.
- Use validated material parameters for your printer and workflow.
- After printing, allow parts to drain before cleaning.
- Clean models with isopropanol and perform post-curing according to your equipment.
For consistent results, cleaning and post-curing must not be overlooked, as they directly impact surface quality, rigidity, and durability of 3D printed dental models.
Is this resin suitable for your lab?
This resin is ideal if you are looking for a 3D resin for dental models intended for regular production of precise, readable, and mechanically stable models. It is particularly suitable for orthodontic models, study models, and thermoforming workflows.
What to check before purchasing
- Printer compatibility with 385 nm or 405 nm
- Availability of a validated material profile
- Access to IPA cleaning and post-curing equipment
- Need for beige opaque shade for model readability
Laboratory tip
To maintain consistent quality across your 3D printed resin models, standardize three key steps: resin mixing, post-print drainage time, and cleaning/post-curing protocol. This improves repeatability and minimizes variation between batches.
Documents & resources
Delivery
Delivery includes 1 bottle of FotoDent® beige opaque resin – 1 kg, designed for 3D printing dental models in laboratory environments.
FAQ – FotoDent® Resin for Dental Models
What is this dental 3D resin used for?
This resin is designed for the production of 3D printed dental models, including study models, orthodontic models, and working models used in prosthetic and thermoforming workflows.
Is FotoDent® resin compatible with 385 nm and 405 nm printers?
Yes. This product range is compatible with 385 nm and 405 nm dental 3D printers. It is recommended to use a validated material profile for optimal accuracy.
Is this resin suitable for orthodontic models?
Yes, it is specifically designed for orthodontic and prosthetic dental models, making it suitable for aligners, study models, and treatment planning.
What are the key mechanical properties?
This resin offers flexural strength ≥ 85 MPa, flexural modulus ≥ 1,750 MPa, viscosity of 0.8–1.2 Pa·s, and a final hardness of 80–85 Shore D, making it ideal for rigid dental models.
Why choose an opaque beige shade?
Opaque beige improves visual readability, offering better contrast for margins, anatomical details, and overall morphology, which enhances laboratory inspection comfort.
Is post-curing required after printing?
Yes. Proper cleaning followed by post-curing is essential to ensure dimensional stability, mechanical strength, and optimal surface quality.
