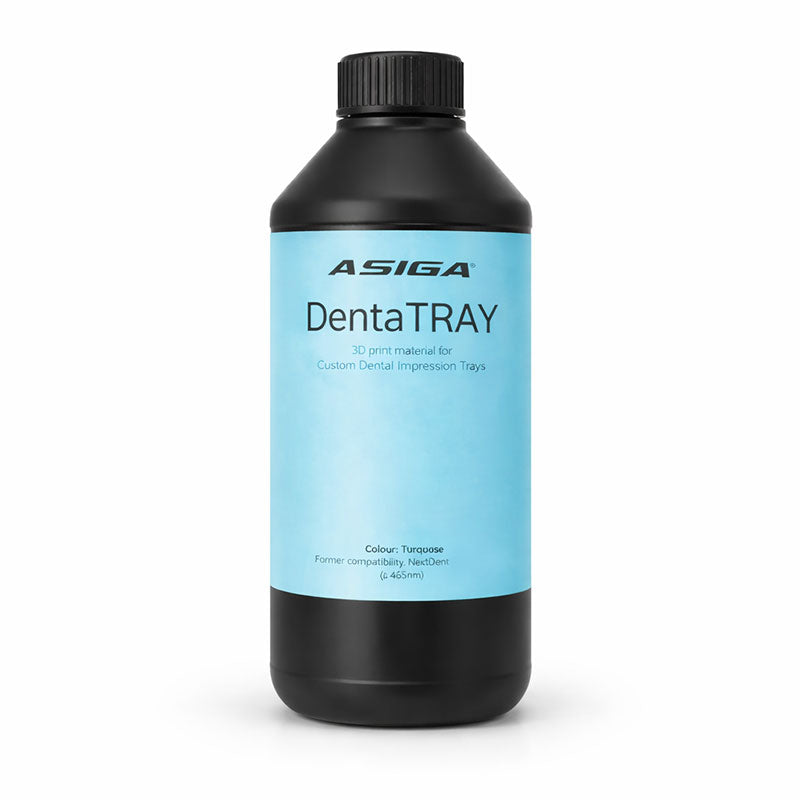

Asiga DentaTRAY – Biocompatible 3D resin for custom impression trays
Référence: H103385
Asiga DentaTRAY - biocompatible material for custom impression trays
- Brand: Asiga
- SKU: H130385
Achieve highly accurate impressions with Asiga DentaTRAY: a precise, rigid and dimensionally stable dental 3D printing resin for manufacturing custom impression trays.
Compatible with common impression materials (A-silicones, polyethers, etc.), DentaTRAY supports faithful anatomy reproduction and streamlines complex cases in a predictable digital workflow.
- Class I biocompatible - professional dental use
- UV LED 385/405 nm - compatible with Asiga & DLP systems
- Rigidity & dimensional stability for consistent accuracy
- Color: Turquoise
- Manufactured under ISO 13485:2016 / EN ISO 13485:2016
Key benefits
Accuracy & rigidity: DentaTRAY provides a stable, rigid base for precise impressions, including complex cases. Its dimensional stability helps reduce distortion and improves repeatability.
Optimized for UV 385/405 nm workflows, it integrates smoothly into Asiga and DLP production.
Class I biocompatibility and ISO 13485 manufacturing support safe, professional use.
Dental applications
- Custom impression trays (single units, quadrants, full arches)
- Cases requiring enhanced rigidity and stability
- Optimized workflows combining digital and conventional impressions
- Compatibility with most impression materials
Goal: a reproducible, accurate tray tailored to patient anatomy—while reducing chairside adjustments.
Lab tip: continuous resin mixing
For consistently homogeneous resin and stable properties, use a dedicated resin agitator.
Continuous mixing reduces filler sedimentation and improves print repeatability, dimensional stability and surface consistency for DentaTRAY custom trays.
Workflow - recommended steps
- Preparation: homogenize the resin (agitator recommended).
- Printing: use validated printer settings for 385/405 nm.
- Cleaning: rinse in IPA and dry thoroughly.
- UV post-curing: follow the DentaTRAY IFU.
- Finishing: deburr and polish if required.
Technical specifications
| Use | Manufacturing custom impression trays |
| Wavelength | 385 nm and 405 nm (UV LED) |
| Printer compatibility | Asiga & other compatible DLP/UV LED systems |
| Biocompatibility | Class I - Regions: FDA, MDR, UKCA, TGA, Health Canada |
| Manufacturing | ISO 13485:2016 & EN ISO 13485:2016 |
| Color | Turquoise |
| Packaging | 1 bottle - 1 L |
Shipping
Shipping: DentaTRAY resin for printing custom impression trays - 1 liter.
Documents & resources
- 🎥 Official video - Watch the video
- 📄 SDS - Download the PDF
- 🧩 IFU - Download the IFU
FAQ - frequently asked questions
Which 3D printers is DentaTRAY compatible with?
DentaTRAY is designed for Asiga printers and also works on other DLP/UV LED systems using 385/405 nm. To maintain dimensional stability for custom trays, carefully adjust exposure times, layer height and LED output to match your machine. Then follow a thorough IPA rinse and UV post-curing protocol according to the IFU. A dedicated resin agitator improves homogeneity and repeatability—especially for batch production.
Is DentaTRAY biocompatible for dental use?
Yes. Asiga DentaTRAY is a Class I biocompatible resin for manufacturing impression trays. It is produced under ISO 13485 and recognized across multiple regions (FDA, MDR, UKCA, TGA, Health Canada). For safe, predictable results, follow the complete workflow: homogenization, controlled 385/405 nm printing, IPA cleaning, full drying, and UV post-curing exactly as specified in the IFU.
What are the key steps to achieve a successful impression?
Start by keeping the resin homogeneous (agitator recommended), then print with validated UV 385/405 nm parameters. After printing, perform a methodical IPA rinse, dry completely, and complete UV post-curing per the DentaTRAY IFU. Deburr and smooth borders for comfort, then select a compatible impression material (silicone, polyether, etc.). This process supports accuracy, dimensional stability, and reproducible clinical results.
Which impression material should be used with DentaTRAY?
DentaTRAY is compatible with most impression materials (silicones, polyethers, etc.). Material selection depends on the clinical case and moisture control. The tray’s rigidity provides stable support and helps reduce deformation. For consistent results, keep an appropriate tray thickness, ensure careful edge finishing, and maintain resin homogeneity (agitator recommended) when producing multiple trays.
